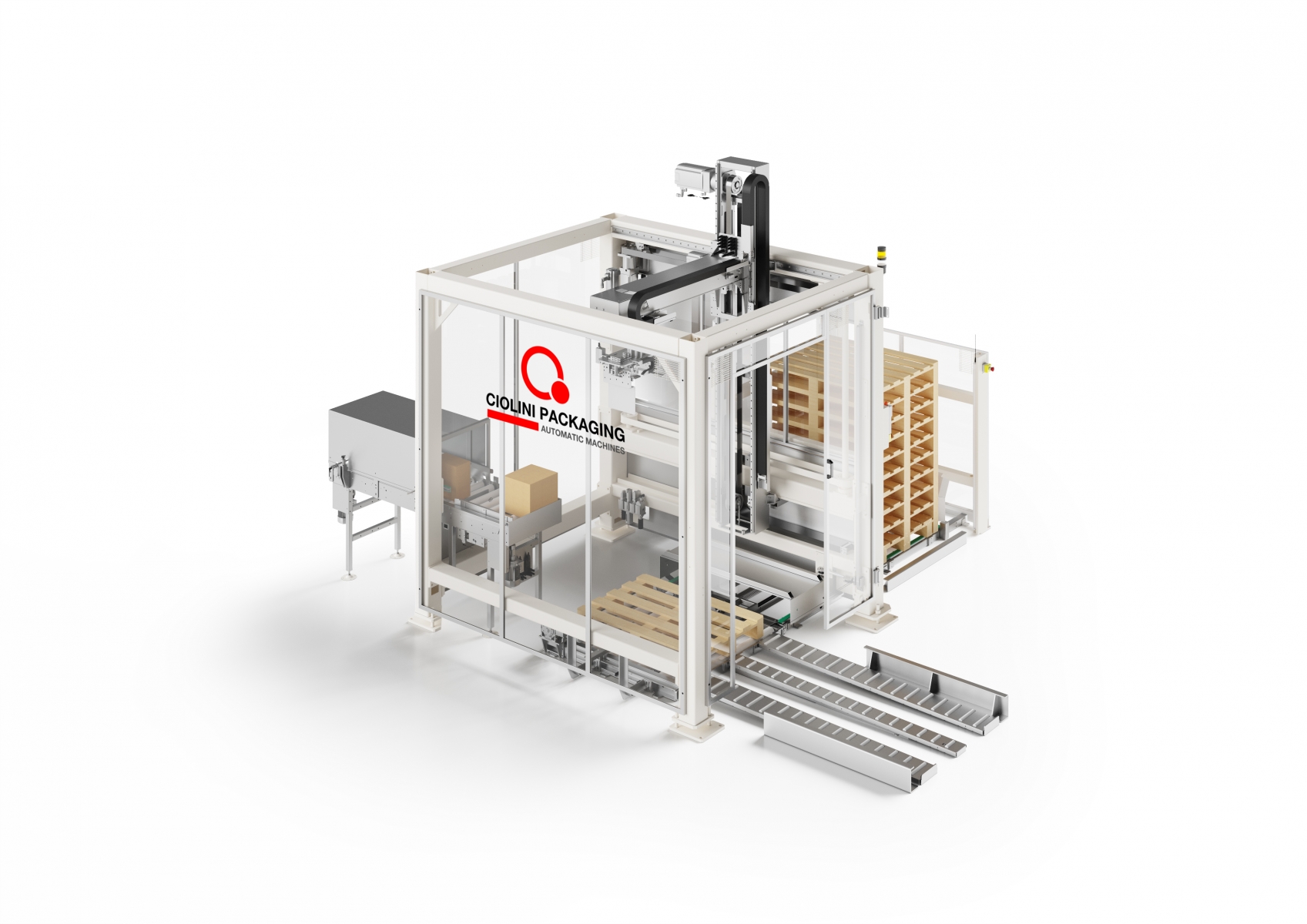

CARTESIAN PALLETIZER - 3 AXES mod. CPM18-C
Cartesian 3 axes palletizer mod. CPM18-C is suitable for picking cartons or bundle of different kind and type and deposit them on pallet, with dimension 800X1200 mm and 1000x 1200 mm.

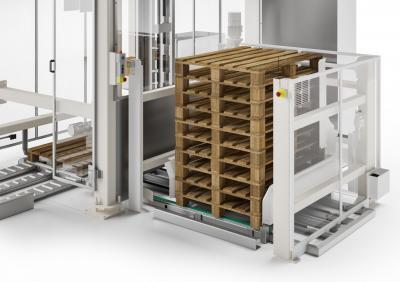

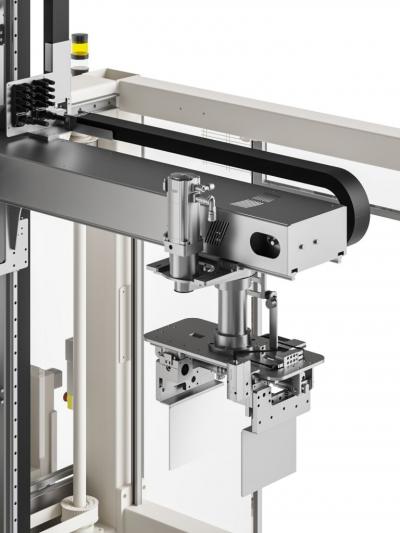

The machine is equipped with input conveyors belts of cartons or bundles, automatic storage for empty pallets, pallet conveyors, picking system with rotating head at pneumatic pince or suction cups plate, automatic system to place the interlayer. Il magazzino pallet è caricabile mediante muletto, il prelievo del pallet carico in uscita macchina è eseguibile mediante muletto, traspallet elettrico e traspallet manuale. Pallet storage is chargeable by using the forklift; the output pallet picking is doable by forklift, electrical transpallet and manual transpallet.
Technical sheet
| Model | CPM18-C |
| Products | cartons and bundles |
| Maximum charge | 30kg |
| Maximum height | 2100 mm |
| Production | 10 boxes/min (multiple pickings are possible) |
| Boxes dimension | L=270÷600mm – W=120÷400mm – H=140÷400mm |
Features:
- Versatility in carton type
- Automatic change format
- Siemens Technology
- Intuitive operator interface tank to the touch screen of easy accessibility; integrated modem for remote assistance
