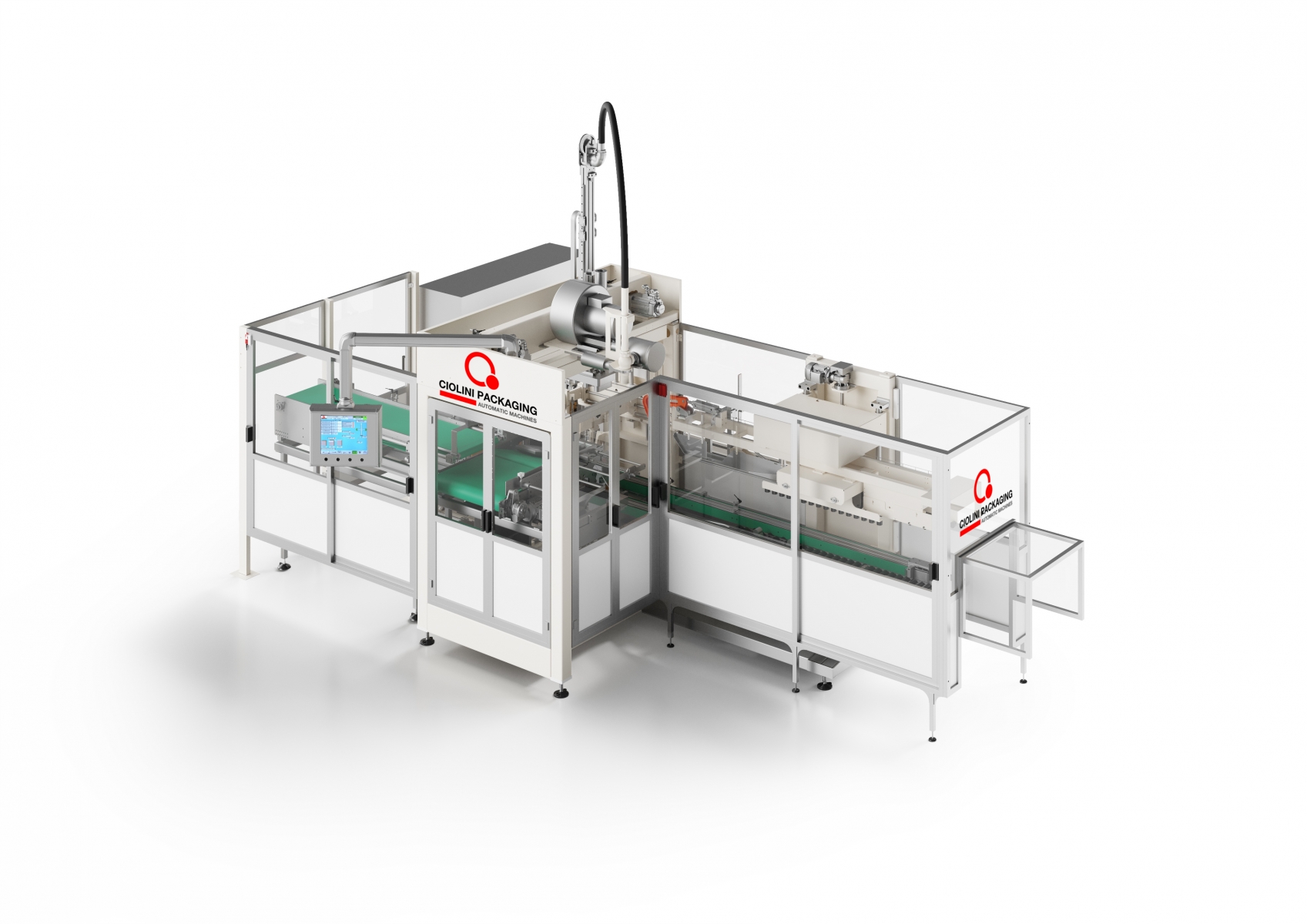

CASE PACKER mod. SVM18-H FOR BAGS IN HORIZONTAL

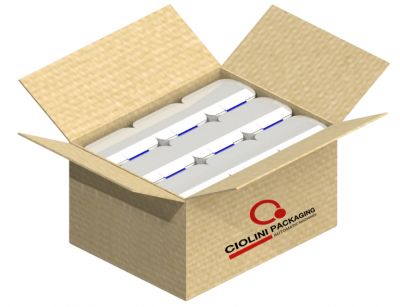

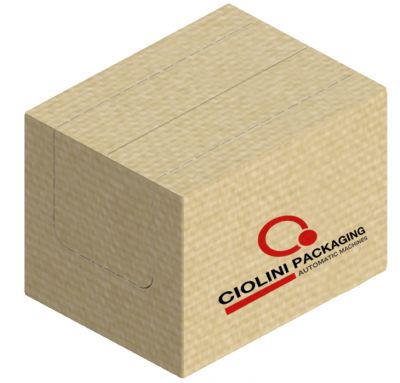

Case packer mod. SVM18-H is suitable for a vertical pick & place filling of the carton with pillow, square bottom, double square bottom bags in horizontal position inside American and expositor carton type. The closing of the carton can be done with adhesive tape or hot glue.

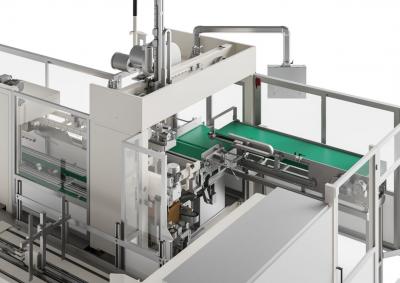

The machine is equipped with a input step-belt to receive the bags coming from one or more packaging machines and, by motorized arms with pneumatic drive, the picking and the carton formation are done. After the picking of the layer and the filling of the carton by 2 interpolated axes arm and aspirating picking head, carton is moved towards the phase of closing flaps by mechanical contrasts and pneumatic drive arms; in this phase, the adhesive tape or hot glue are affixed.
Technical sheet
Model | SVM18-H |
Products | Different type of products, food and no food |
Bags | pillow, easy-open pillow, square bottom with fin, double square bottom, pillow bag with gusset, cases |
Carton type | pillow, easy-open pillow, square bottom with fin, double square bottom, pillow bag with gusset, cases |
Production | 10 cartons/min |
Carton dimension | L=270÷600mm – W=120÷400mm – H=140÷400mm |
Speed | Max 120 bags/min |
Stock autonomy | around 45 minutes |
Features:
- Versatility in carton type
- Automatic change format
- Siemens Technology
- Intuitive operator interface tank to the touch screen of easy accessibility; integrated modem for remote assistance
