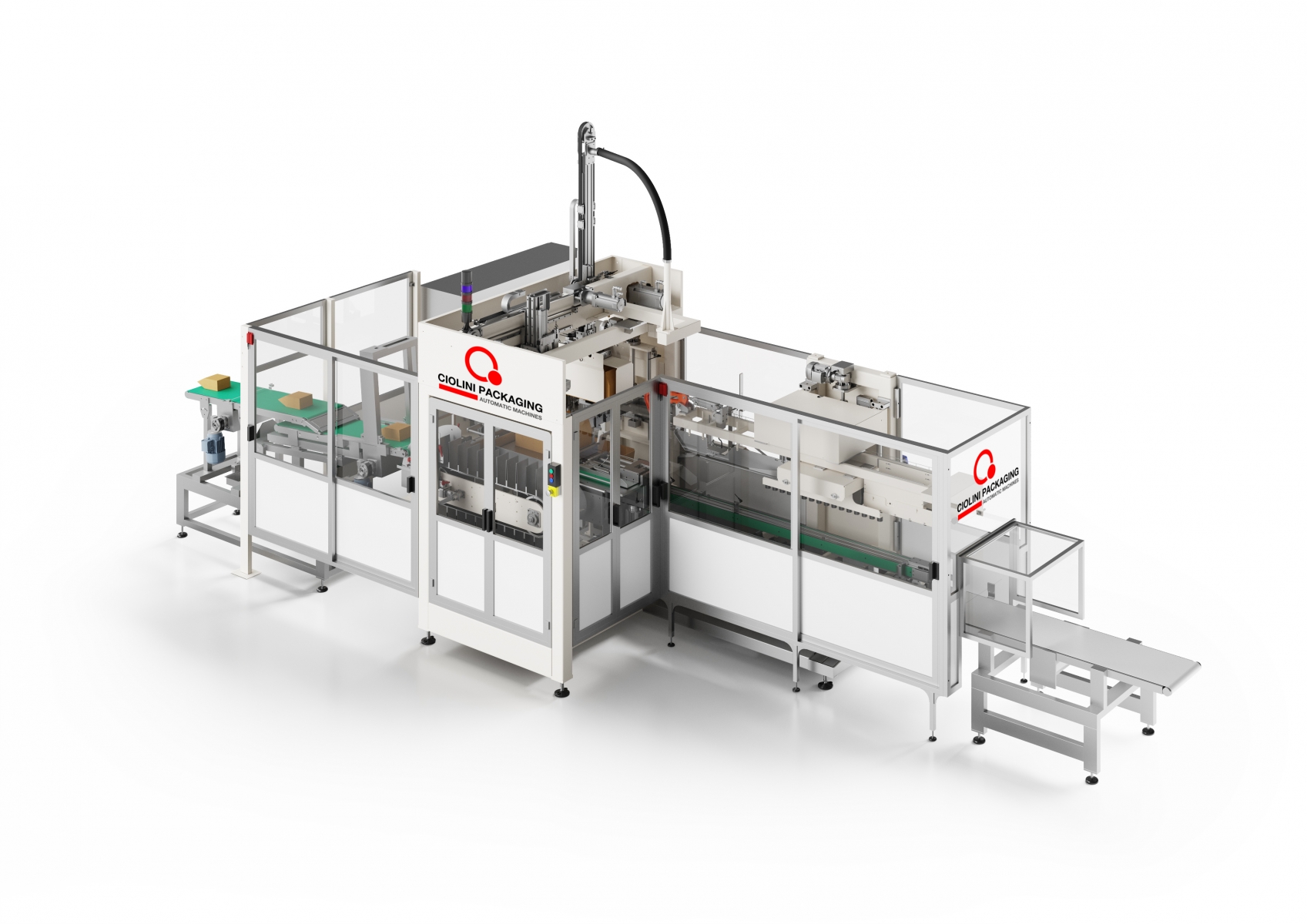

CASE PACKER mod. SVM18-V FOR BAGS IN VERTICAL POSITION

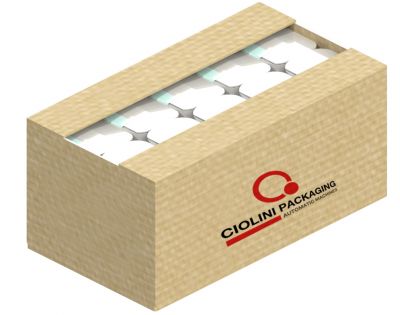

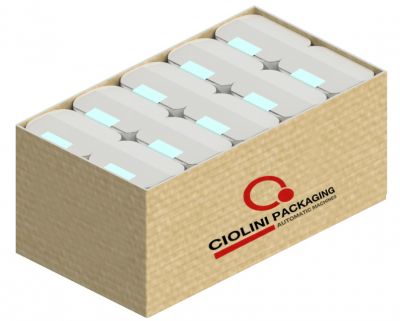

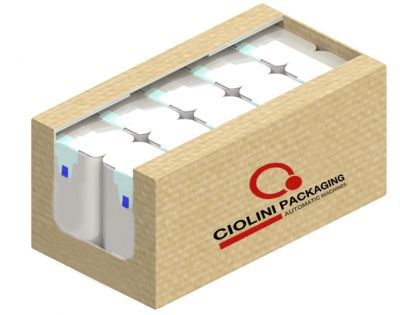

Case packer Mod. SVM18-V is suitable for a vertical pick & place filling of the carton with pillow, square bottom, double square bottom bags, cases in vertical position inside American and expositor carton type. The closing of the carton can be done with adhesive tape or hot glue.

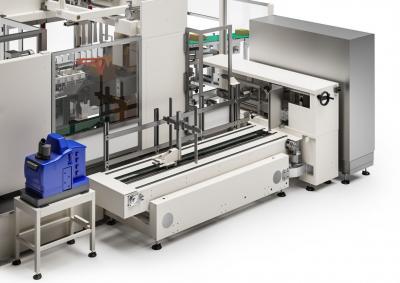

The machine is equipped with a input step-belt to receive the bags coming from one or more packaging machines and, by a bag separation equipment, ,placing the bags in vertical position composing sigle rows that successively are translated on a picking plain by a “comb” pusher to form the layer. Motorized arms at pneumatic drive operate for the picking and carton form. After the layer picking and the filling by 2 interpolate axis and aspirating picking head or automatic pince, carton is moved towards the phase of closing flaps by mechanical contrasts and pneumatic drive arms; in this phase, the adhesive tape or hot glue are affixed.
Technical sheet
Model | SVM18-V |
Products | Different type of products, food and no food |
Bags | square bottom, double square bottom, square bottom with fin, gusseted, cases |
Carton type | American carton, American carton with flaps, American carton with upper flaps, carton with window, pre-cut carton for tearing |
Production | 10 cartons/min |
Carton dimension | L=270÷600mm – W=120÷400mm – H=140÷400mm |
Speed | Max 80 bags/min |
Stock autonomy | around 45 minutes |
Features:
- Versatility in carton type
- Automatic change format
- Siemens Technology
- Intuitive operator interface tank to the touch screen of easy accessibility; integrated modem for remote assistance
